McGyver Vision diffuser

Postby dilly » Sun Jul 15, 2012 12:32 pm

Hey everyone. I have been lurking for quite awhile on this site and love the info exchange that goes on. I picked up a Vision classic from Costco back in May and have been loving cooking on it. I was a digital Bradley guy up till now, but I wanted that elusive "smoke ring", so here I am.

I am also one of those Canadians with limited ability to easily shop for accessories. I took some advice from others and made up this little rig and thought I would post up some pictures in case others wanted to try a cheap alternative to internet shopping/shipping/taxes/duty on a diffuser. I did up the "iron fry pan with handle cut off" trick.

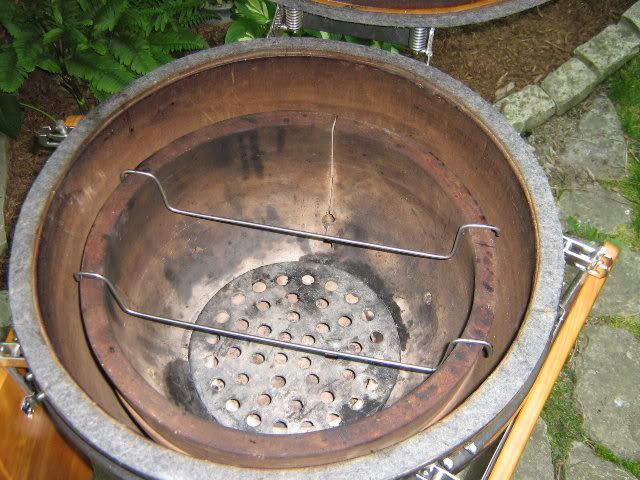

I went to Home Depot and bought a couple stainless steel rods for around $7. I cut them and bent them to hang over the fire box.

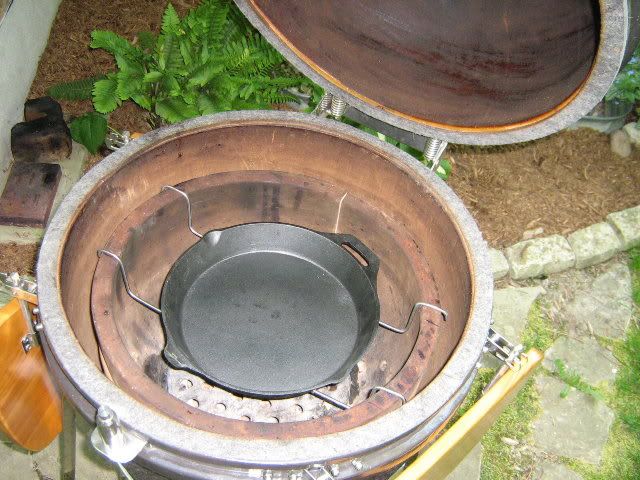

I picked up a cast iron frying pan at the Great Canadian Super Store for $14 and cut the handle off with a grinder. I think it was an 11" pan. It sits level on the rods and rocks back and forth but does not fall off.

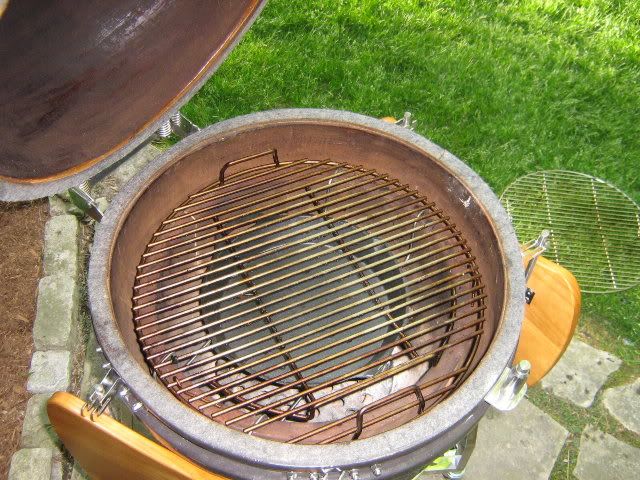

As you can see, it sits in between the coals and the lower grill. I put apple juice and water in it for a pork shoulder "low and slow" but it just boiled dry and ended up catching all the fat drippings. You could keep it topped up though if you tended it. I don't bother anymore; I just use it as a diffuser and it works great.

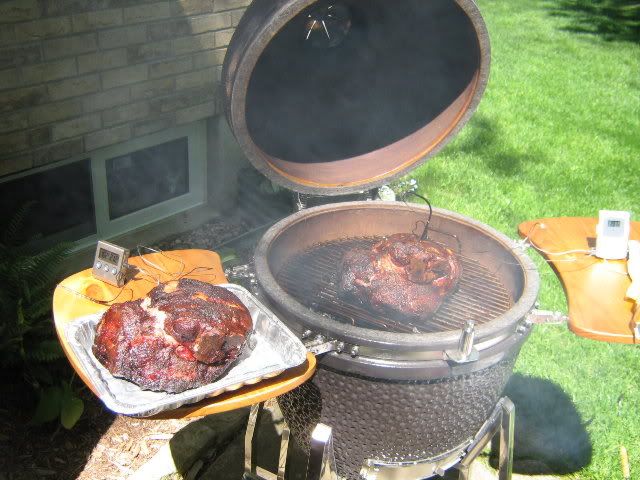

Here is my first 14hr "low and slow" with two bone-in pork shoulders. They were the best I have ever made.

I first tried using a pizza tile instead of the iron pan. The extreme heat broke the tile almost perfectly in half. I use the half now on the lower rack when I want a nice indirect setup and move stuff onto the upper rack above it to cook after being seared. That works well too. I bought a new pizza tile and use it on the upper rack with the pan diffuser in place to do pizza and the results are fantastic. 8-)
Vision Kamado Classic and 4 rack Bradley Digital
User avatar
dilly
Sterno Stover

Posts: 6
Joined: Sun Jul 15, 2012 12:01 pm
Location: Ontario Canada

Re: McGyver Vision diffuser

Postby waldo » Sun Jul 15, 2012 1:59 pm

That looks perfectly functional! Nice thinking.

Saving money is always good. The extra cash is better spent on more meat!
Vision Classic Kamado
User avatar
waldo
Guru Forum Moderator
Guru Forum Moderator

Posts: 347
Joined: Thu Mar 15, 2012 11:07 am
Location: Central Illinois

Re: McGyver Vision diffuser

Postby kdm12701 » Wed Jul 18, 2012 9:29 am

Cool! I was just looking at the $50 stone for the Vision and was wondering how to beat the cost. First thought: pizza stone, but not if it's going to crack. Good idea with the cast iron. Where did you get the support rods?
kdm12701
Toaster King

Posts: 15
Joined: Tue Jul 10, 2012 6:29 pm

Re: McGyver Vision diffuser

Postby pkinetics » Wed Jul 18, 2012 3:29 pm

@kdm - Dilly said he got them from Home Depot.

Look in the fasteners section. There is usually a section where they keep the angle irons, all thread and steel rods.
User avatar
pkinetics
Guru Site Supporter
Guru Site Supporter

Posts: 452
Joined: Tue Apr 24, 2012 7:54 pm
Location: Anchorage, AK

Re: McGyver Vision diffuser

Postby dilly » Thu Jul 19, 2012 10:22 am

pkinetics wrote:@kdm - Dilly said he got them from Home Depot.

Look in the fasteners section. There is usually a section where they keep the angle irons, all thread and steel rods.

Bingo....that's the spot!
Vision Kamado Classic and 4 rack Bradley Digital
User avatar
dilly
Sterno Stover

Posts: 6
Joined: Sun Jul 15, 2012 12:01 pm
Location: Ontario Canada

Re: McGyver Vision diffuser

Postby kdm12701 » Tue Aug 07, 2012 4:46 pm

What diameter rod did you use and could you give me some hints for making such nice bends?
kdm12701
Toaster King

Posts: 15
Joined: Tue Jul 10, 2012 6:29 pm

Re: McGyver Vision diffuser

Postby dilly » Wed Aug 08, 2012 5:01 pm

I think it was 3/16th stainless rod. I clamped it in a vice, clamped a set of vice grips on near the vice on the bend point and twisted like hell. Some of the bends were done with two sets of vice grips and no vice.
Vision Kamado Classic and 4 rack Bradley Digital
User avatar
dilly
Sterno Stover

Posts: 6
Joined: Sun Jul 15, 2012 12:01 pm
Location: Ontario Canada

Re: McGyver Vision diffuser

Postby pkinetics » Wed Aug 08, 2012 9:15 pm

For additional leverage, you can use a metal pipe.

The main thing is to have it firmly secured.

If you have the ability, you can also heat at bend point and it should bend easier. I think I've watched too many episodes of Jessie James Choppers...
User avatar
pkinetics
Guru Site Supporter
Guru Site Supporter

Posts: 452
Joined: Tue Apr 24, 2012 7:54 pm
Location: Anchorage, AK
